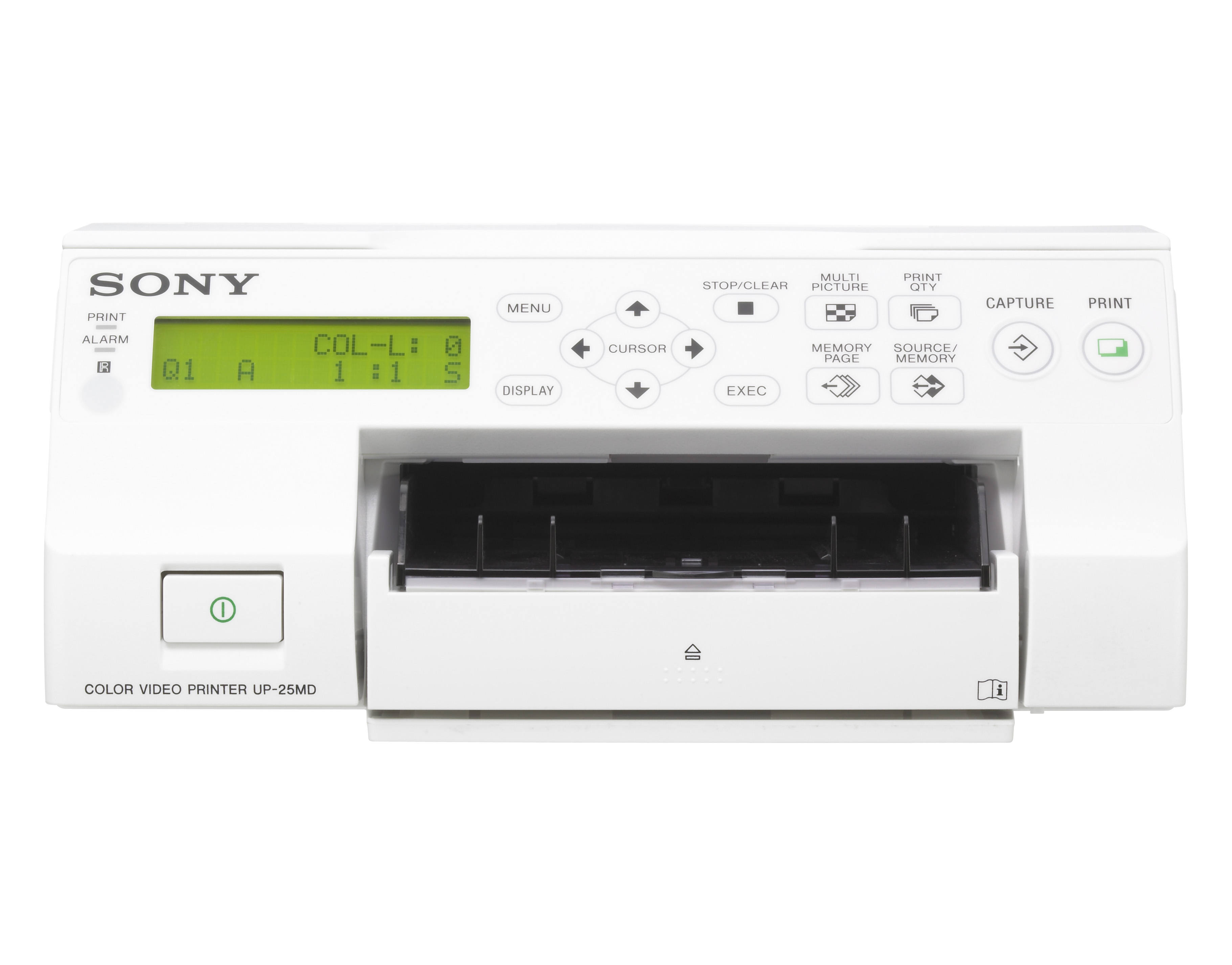

UP-25MD A6 Color Video Printer
This compact, high-speed medical device delivers excellent quality, durable, 423 dpi resolution prints in less than 20 seconds and easily integrates with other video equipment with its slim 8 3/8” form factor. The new printer’s convenient front-panel design offers user-friendly menus, flexible color adjustment and two user presets. The new device supports both 1080i and 720p signals which are automatically detected by the printer. An added LED notifies the user of data transmission and print cartridge status.
Sony ~ Your Source For Quality Images!
Endoscopy, Ultrasound, C-arm, Cardiac Cath Lab
- Improved resolution ensuring superb picture quality
- Fast print speed
- High-quality prints and long archival life
- Higher humidity, water and heat resistance
- Top-notch imagery that lets you and your patients see crucial detail
UP-25MD A6 Color Video Printer
- Slim Compact Design
- Ideal for Medical Carts; Easily Integrated
- Versatile Analog Video Inputs and Outputs
- HDTV signal support – 1080i and 720p automatically
- PAL & NTSC compatible, all standard interfaces
- RS-232 Control
- High resolution – 423 dpi, New LCD Front Panel Screen design
- Two color settings can be set from the front panel
- LED indicates data transmission and ribbon cartridge status
- Convenient Sizes of Media:
- UPC-21S (3 ¾” X 2 7/8”)
- UPC-21L (5” X 3 5/8”),
- UPC-24SA (3 ¾” X 2 7/8”) – Laminated Media
- UPC-24LA (5” X 3 5/8) – Laminated Media
| Connector |
Video Printer |
| Dimensions |
8 3/8" X 3 7/8" X 15 5/8" (WHD) |
| Gradation |
YMC images using 8 bit/256 gradations per color, approx |
| Input Current |
1.7-1.0 A |
| Interface |
RGB/YPbPr (BNC X 3)
S Video (4-pin min-DIN X 1)
Composite Video (BNC X 1) |
| Paper Tray Capacity |
S Size tray: Max. 80 sheets L Size tray: Max 50 sheets |
| Power Consumption |
AC 100 to 240V, 50/60Hz |
| Print Media |
UPC-21L (L size standard color print pack) (4 x 50 packs)
UPC-21S (S size standard color print pack) (3 x 80 packs)
UPC-24SA (S size Laminated color print pack) (3 X 60 packs)
UPC24LA (L size Laminated color print pack) (4 X 40 packs) |
| Print Size |
UPC-21L/UPC-24LA Size: Full 5 X3 3/4"
UPC-21S/UPC-24SA Size: Full 3 3/4 X 2 7/8" |
| Print Speed |
NTSC: UPC-21S approx. 19 sec.
(high speed mode) UPC-21L approx. 29 sec. |
| Printing Method |
Dye Sublimation Thermal Printing |
| Resolution |
423 DPI |
| Safety Compliance |
UL 1950 and UL 2601-1 Listed
CSA C22.2 No. 601.1
No. 950
EN60950
EN60601-1 |
| Thermal Head |
423 DPI |
| Type |
Color Printer |
| Weight |
Approx. 12.6 |
